St Mary's church Teddington
This small tracker action organ received an unusual enlargement in 2006 - the addition of 13 digital ranks. We were called in to discuss adding the extra tone colours in order to increase overall power and add tonal variety to this otherwise run-of-the-mill pipe organ. We achieved this by adding contacts to key trackers and drawer stops, installing MIDI encoding hardware and a PC with the world famous Hauptwerk software, and studio quality speakers to the Great and Swell divisions. The sample set chosen was of Willis origin, sampled dry, so that the digital stops wouldn't sound out of place against the pipe stops. The end result was successful and the church have been using the hybrid instrument ever since.
We continue to maintain the organ for tuning to the pipe ranks plus other general maintenance. A few years back intruders let off a powder fire extinguisher in the church, which coated the organ in fine white powder. We were called in to clean the instrument throughout and also took the opportunity to sort out a few other issues, including a stiff slider and woodworm ingress. The photos below are from the cleaning project.

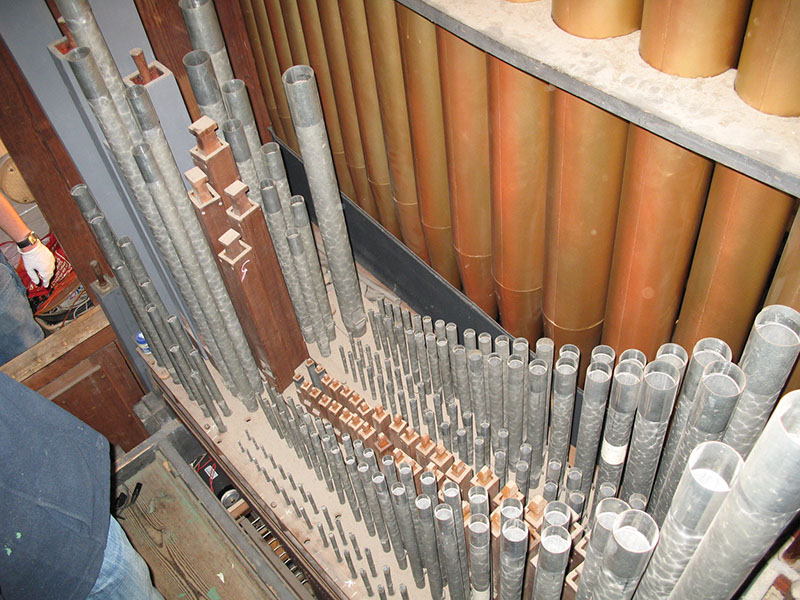

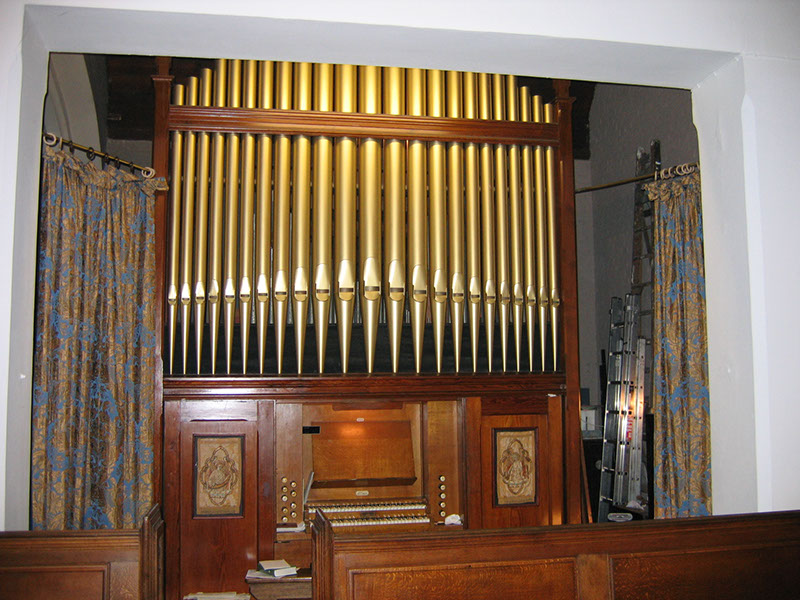

Great division pre-cleaning

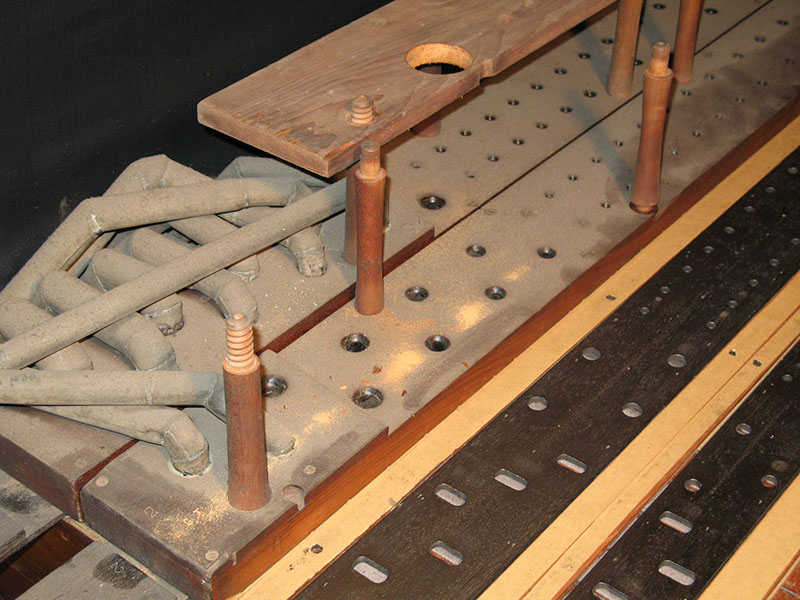

Rack boards removal, revealing woodworm dust

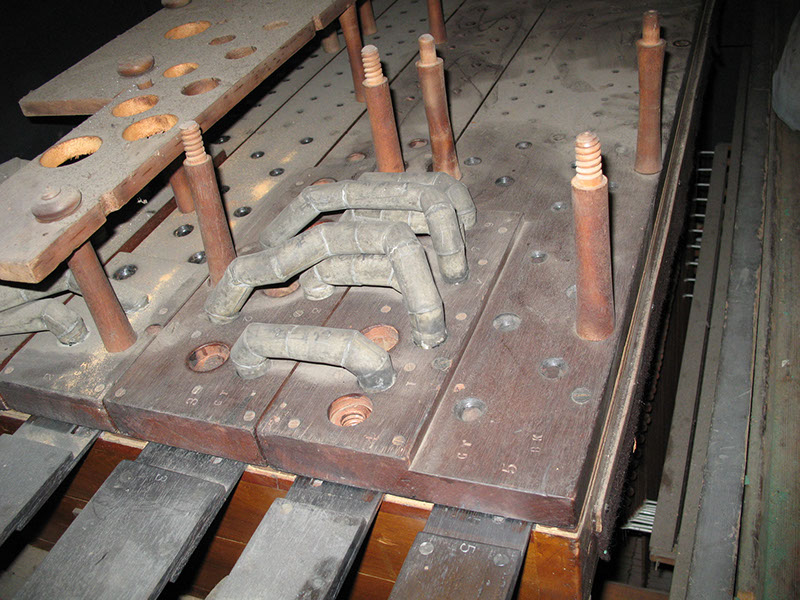

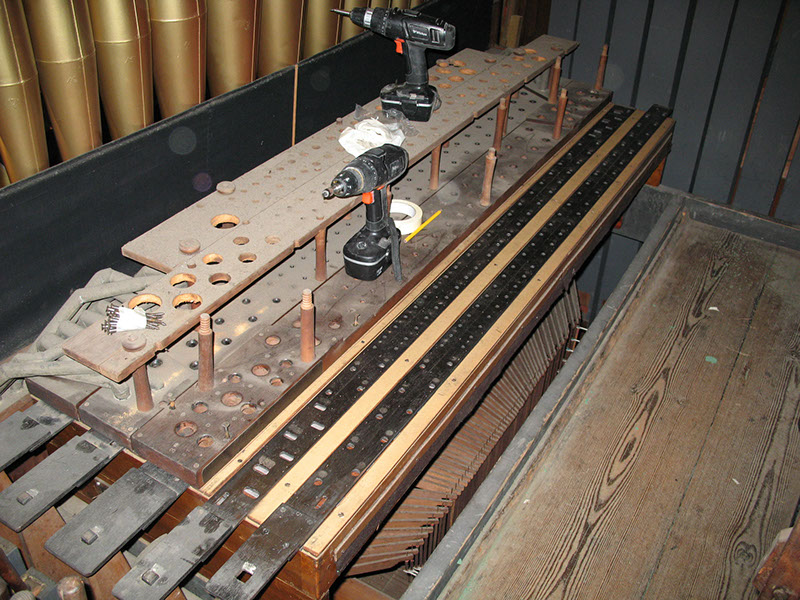

Top boards removal
Tell-tale woodworm sawdust

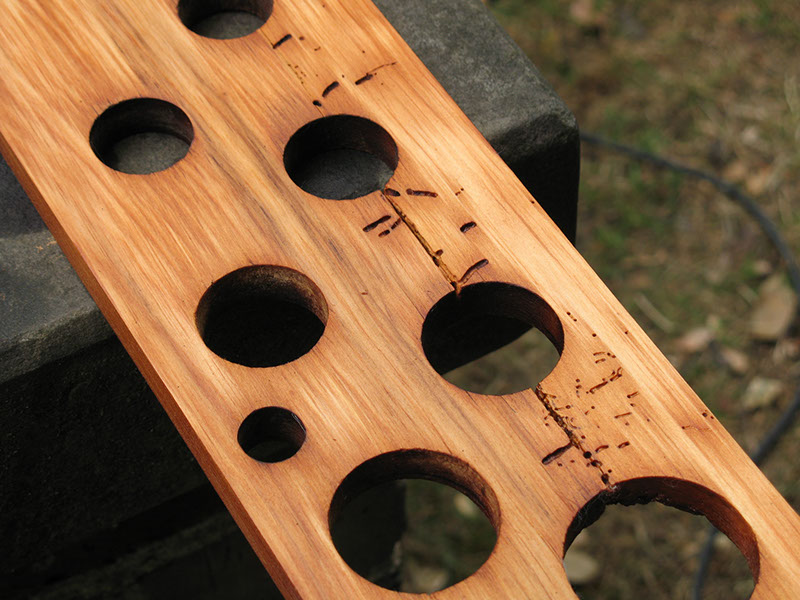

Sanding back rackboards revealed full damage

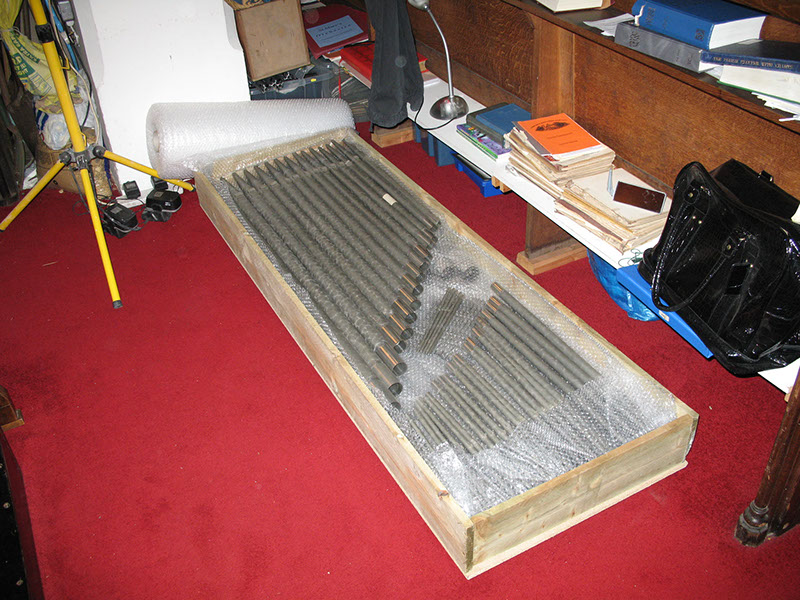

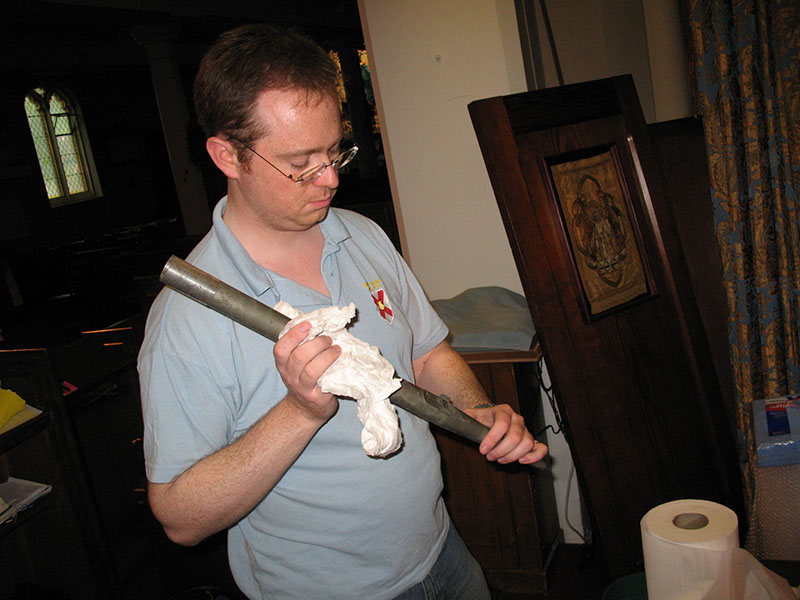

Individual pipe cleaning

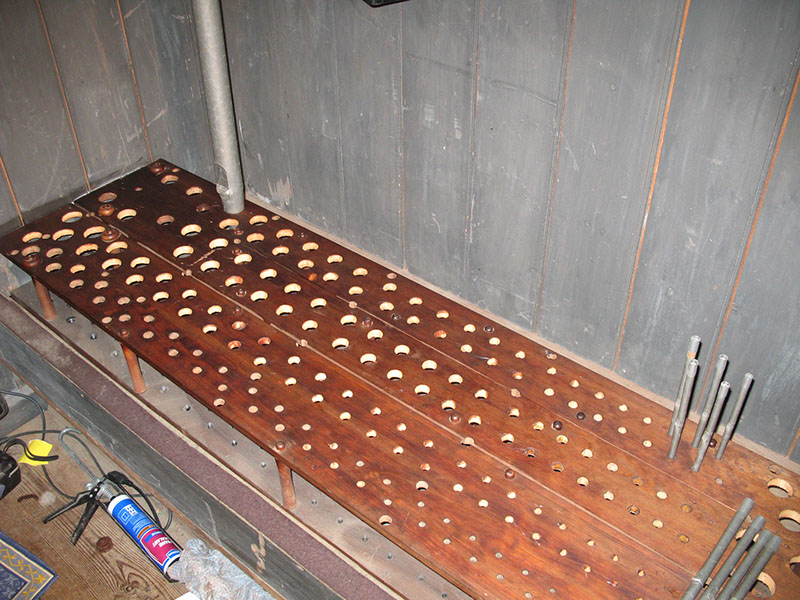

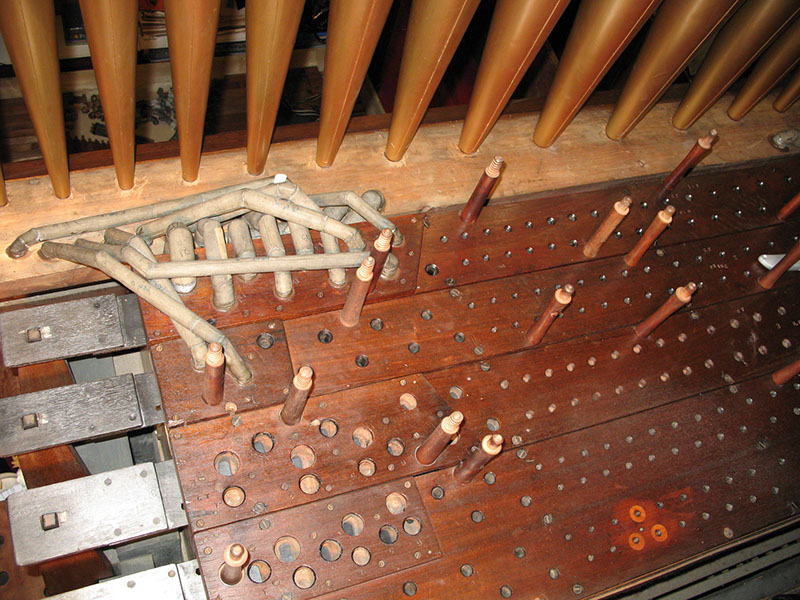

Slider movement remedied and top boards back on

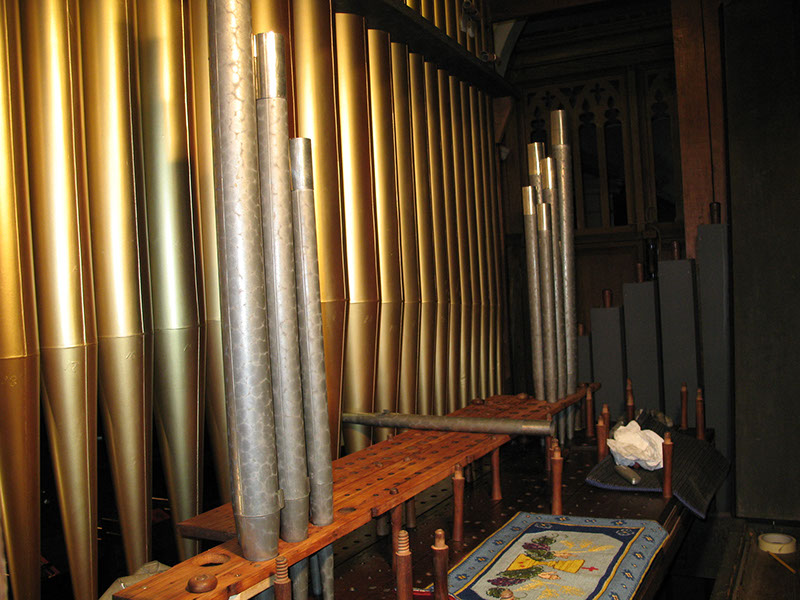

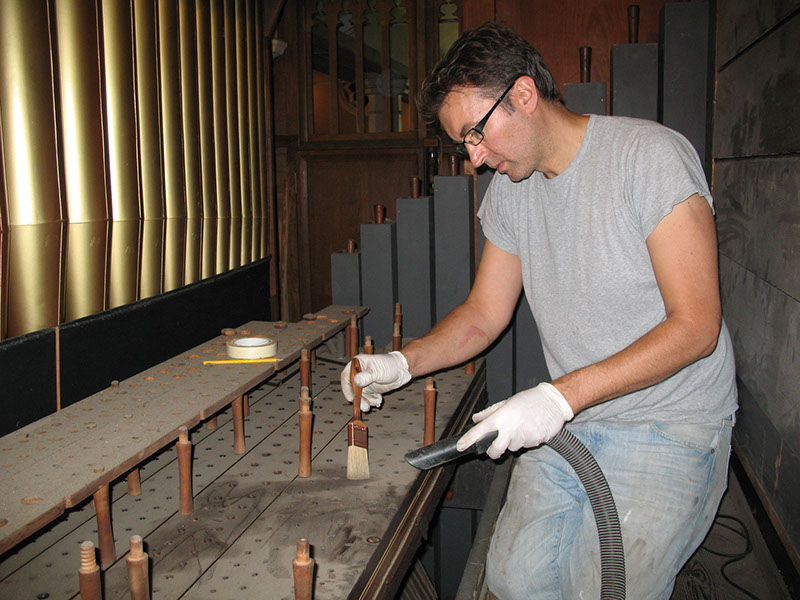

Swell cleaning in progress

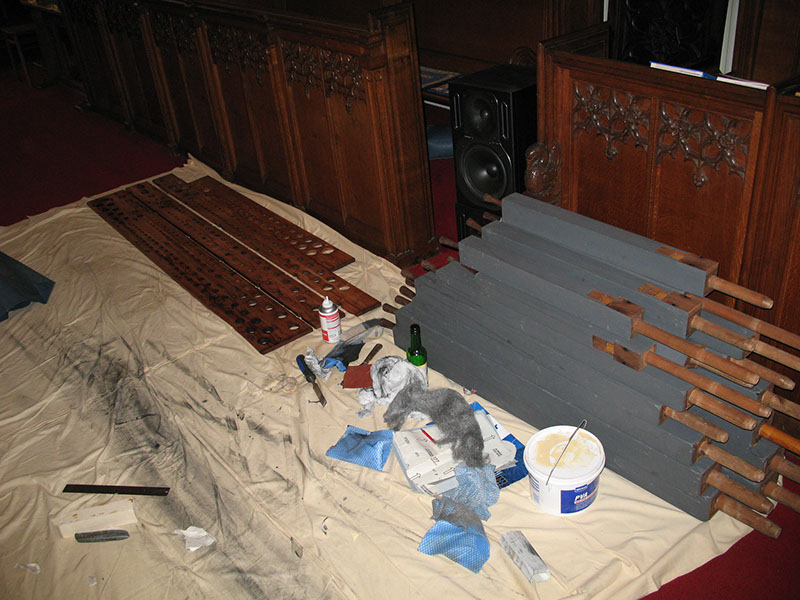

Cleaned, sanded and treated rackboards & pipes

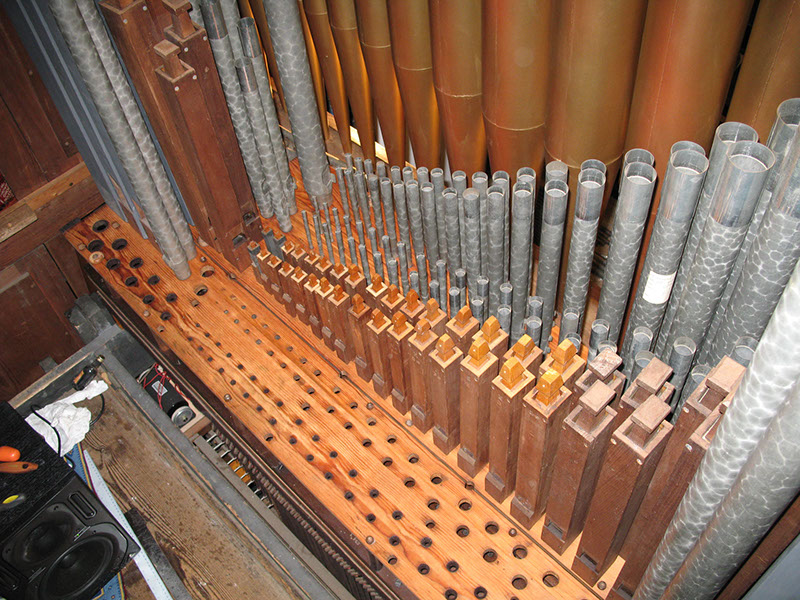

Great nearing completion

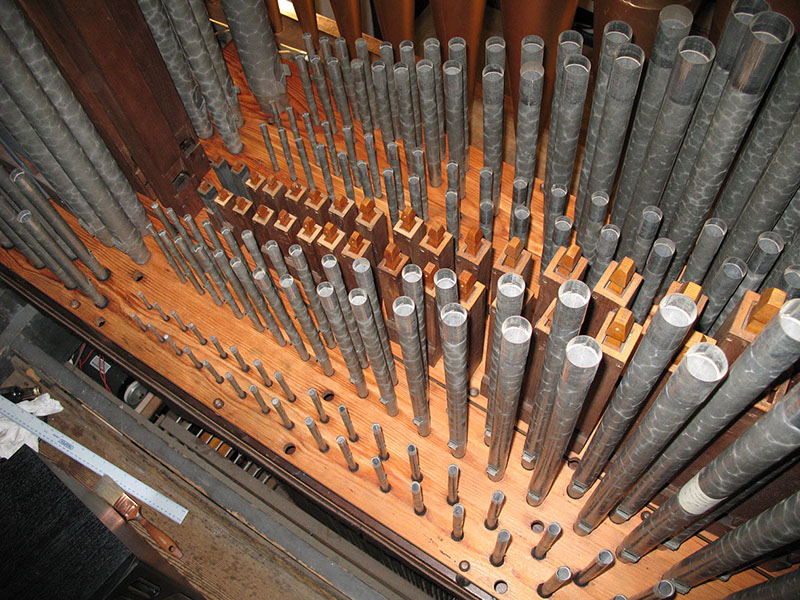

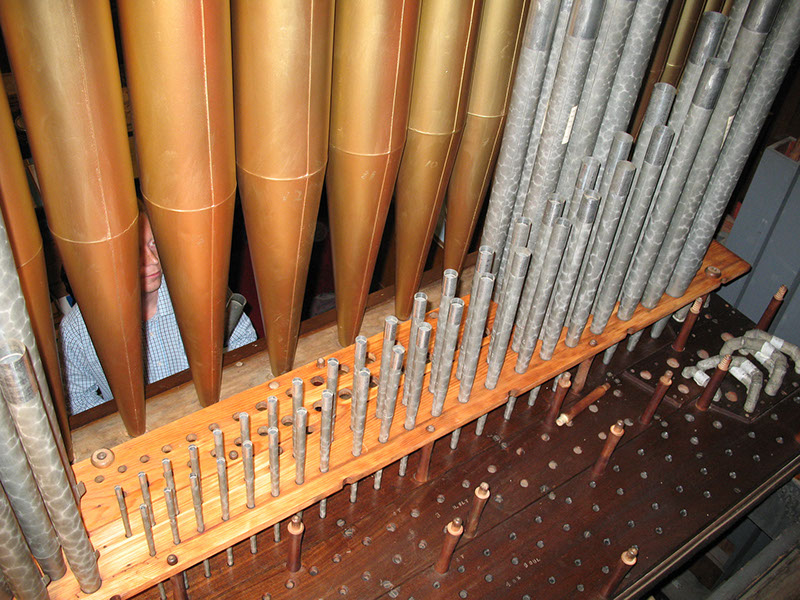

Finished Great division, pipes replanted and tuned
